Model No: HWN11000YD
Merek: PESANAN OEM DITERIMA
Sumber Daya: Hidrolik
Aplikasi: MOBIL
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
Winch Hidrolik 11000 lb untuk truk No.HWN10000YD
Workhose yang kuat dengan daya tarik 11000 lbs.
Sempurna untuk aplikasi derek, utilitas, dan trailer.
Peredam gigi planetary dua tahap baja yang dikeraskan dengan paten menyediakan
Tindakan pengereman otomatis memberikan kontrol yang dapat diandalkan
Memenuhi standar SAEJ706 dan CE
Termasuk dengan kait, tali kawat dan tensioner SWR.
Roller fairlead dijual terpisah.
FITUR:
Kopling winch dapat tersedia 3 jenis: Manual, kopling udara atau Kopling campuran Manual & Udara
ITEM NO.HWN11000YD (Clutch Manual)
ITEM NO.HWN11000Y1D (Kopling UDARA)
ITEM NO.HWN11000Y2D (Manual dan Kopling Campuran Udara)
HWN11000YD/Y1D/Y2D
| SPECIFICATION | |
| Rated line pull | 11000 lbs (4990 kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 15~45L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5.0) |
2.3 (0.7) |
|
3000(1361) |
4.5(652.7) |
2.6(10.0) |
4.6(1.4) |
|
6000(2722) |
6.8(986.2) |
5.3(20.0) |
8.9(2.7) |
|
9000(4082) |
9.0(1305.3) |
9.2(35.0) |
15.1(4.6) |
|
11000(4990) |
12.5(1812.9) |
10.6(40.0) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
1 |
11000(4990) |
16.4 (5.0) |
|
2 |
8695(3944) |
37.2(11.3) |
|
3 |
7189(3261) |
60.9(18.6) |
|
4 |
6128(2779) |
83.7(25.5) |

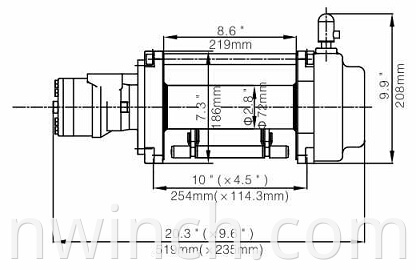

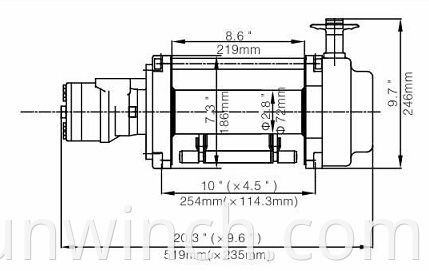

| ITEM | HWN11000YD | HWN11000Y1D | HWN11000Y2D |
| Overall dimensions | 20.4″×9.6″×9.7″ | 20.4″×9.6″×8.2″ | 20.4″×9.6″×11.5″ |
| (L×W×H) | 519mm×235mm×246mm | 519mm×235mm×208mm | 519mm×235mm×291mm |
| Net weight (Ibs) | 117 | 117 | 117 |
| (kgs) | 53 | 53 | 53 |

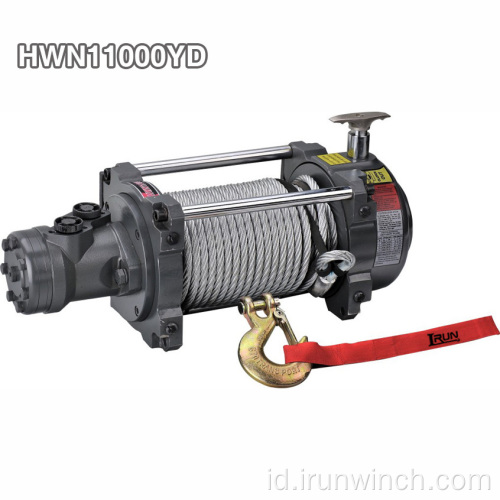

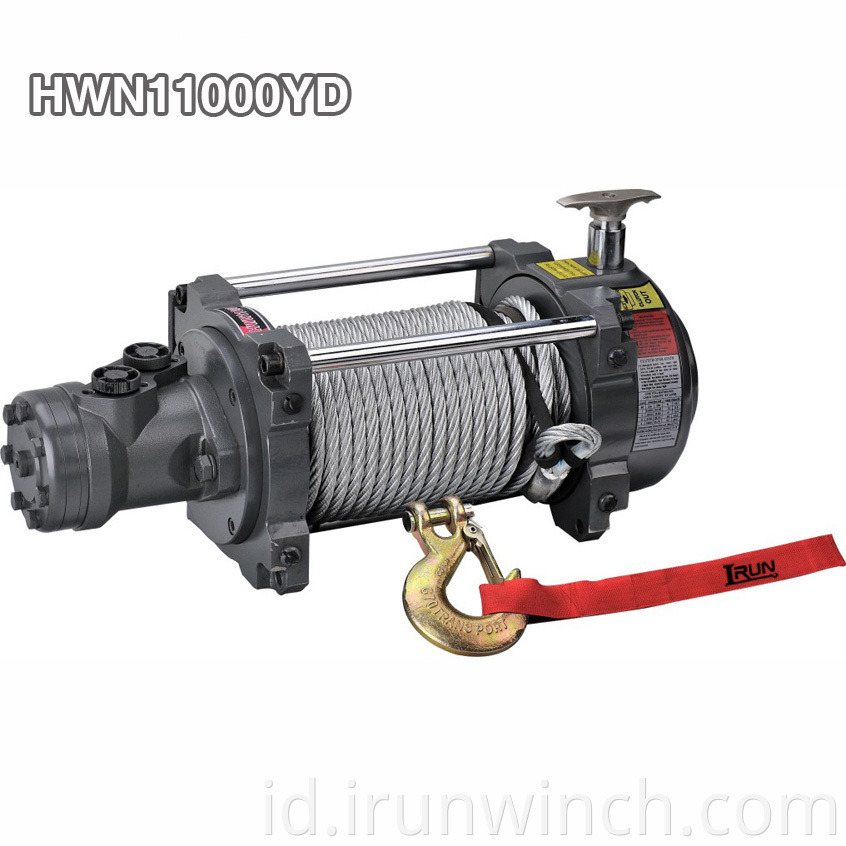

HWN11000YD
HWN11000Y1D
HWN11000Y2D
Trailer kami / Industrail Winches banyak digunakan di derek, trailer,
kendaraan pengangkut pelat datar, mesin rekayasa, off-road
kendaraan militer dan kendaraan khusus.
Kategori Produk : Derek Industri > Winch Hidrolik Industri
