Model No: EWX8000F
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

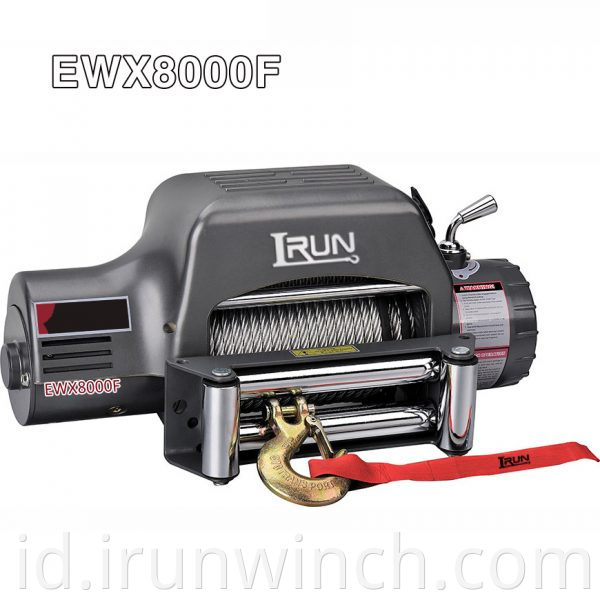

EWX8000F
8000 lbs Electric Offroad Recovery Winch yang merupakan winch dengan kotak kontrol stand-up dan dipasangi motor lilitan seri yang kuat. Winch yang dilengkapi dengan peredam gigi planet tiga tahap desain paten sendiri untuk memastikan efisiensi transmisi yang ekstrem dan keamanan yang andal. Ini memenangkan repuation baik dari klien kami karena itu efisiensi yang sempurna, menarik stabil dan fitur desain yang kompak.
Fitur:
1. Roda gigi peredam baja penuh
2. Paten peredam gigi planet tiga tahap
3. Kopling spooling gratis
4. Tindakan pengereman kerucut sekrup otomatis
5. Motor Luka Seri Pendek
6. Penggerak daya DC 12V atau DC 24V opsional
7. Remote control melalui kotak kontrol dan sakelar
8. Remote control nirkabel tersedia tipe F tetap di kotak kontrol
9. SWR tensioner tersedia
EWX8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |

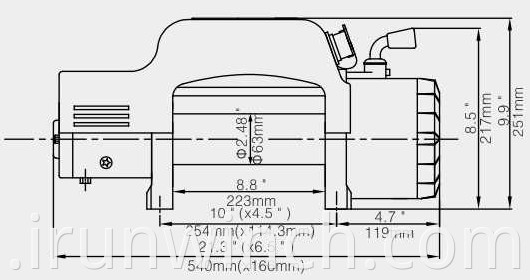

Dimensi Keseluruhan: 21,3″ x 6,5 x 9,9″
(P x L x T) 540mm x 166mm x 251mm
Berat bersih 37.2 KGS
Kategori Produk : Derek Listrik > Winch Pemulihan
