Model No: EWD10000
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

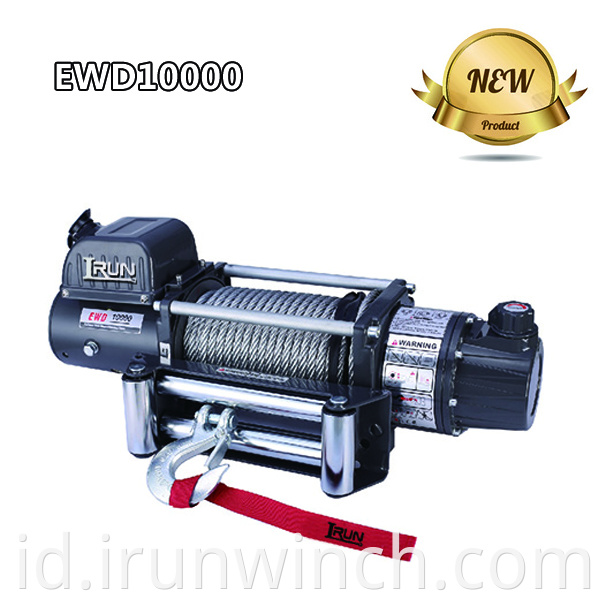

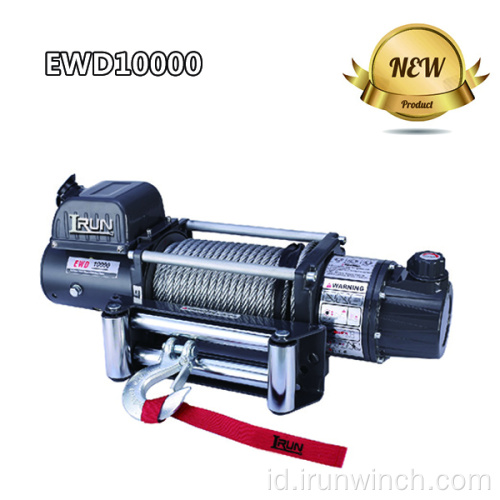

Dua Kecepatan 4 × 4 Winch Listrik 10000 Lbs Dengan Kopling Paten Item No. EWD10000
EWD SERIES Seri Winch adalah derek listrik dua kecepatan yang sempurna dengan Max. Gaya tarik 5.500 lbs pada kecepatan tinggi. Pergeseran kecepatan dan kontrol kopling dapat diaktifkan secara bersamaan untuk memberikan kenyamanan lebih kepada pengguna.
Fitur:
EWD 10000
| Specification: | ||||
| Rated line pull | 10000 lbs (4536 kg) | |||
| Motor: Series wound | 12V:Input: 4.3kW / 5.7hp | |||
| Output: 2.1kW / 2.8hp | ||||
| 24V:Input: 4.1kW / 5.5hp | ||||
| Output: 2.8kW / 3.8hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 22.3(6.8) | 300 | 135 |
| 8000(3629) | 7.9(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 19.0(5.8) | 365 | 170 |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 360 | 170 | 4500(2041) | 13.1(4.0) | 17.1(5.2) | 400 | 210 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 10000(4536) | 17.4(5.3) |
| 2 | 7969(3615) | 39.4(12.0) |
| 3 | 6624(3005) | 65.0(19.8) |
| 4 | 5667(2571) | 85.3(26.0) |

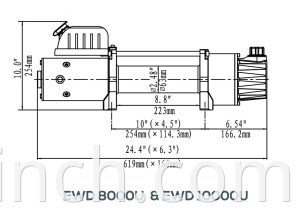

| ITEM | EWD 10000U | EWD 10000S | EWD 10000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 86.0lbs / 39.0kg | 88.2lbs / 40kg | 92.6lbs / 42kg |
Kategori Produk : Derek Listrik > 2 Kecepatan Listrik Winch
