Model No: EWN15000S
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

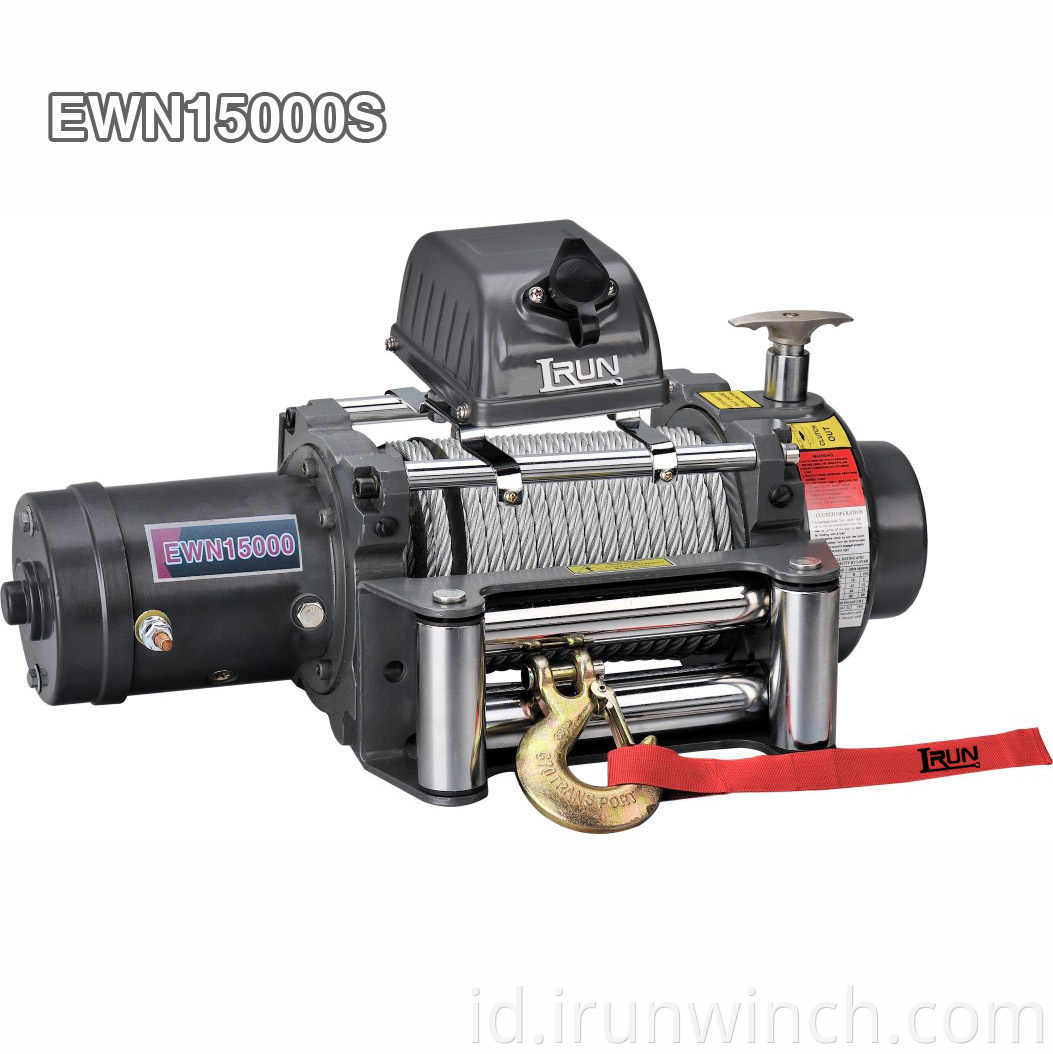

15000 lbs Electric duty Winch ITEM NO. EWN15000S
Ekuimen standar untuk semua winch listrik tugas pemulihan EWN15000 adalah kotak kontrol pada tie bar, roller failread dan
satu set tali kawat dengan harapan.
Jika Anda menginginkan winch untuk memenuhi penggunaan offroad atau engineering yang terputus, Winch Seri EWN kami dapat menjadi pilihan ideal Anda.
Seri ini memiliki 30% lebih tinggi pada kinerja keseluruhan masa kerja, kecepatan saluran, dan efisiensi transmisi daripada Seri Winch reguler kami.
Fitur:
1.) Kopling spooling gratis
2.) Tindakan pengereman kerucut sekrup otomatis
3.) Motor luka seri
4.) Desain paten peredam gigi planet tiga tahap
5.) Bentuk yang dirancang khusus untuk kenyamanan pemasangan dan tampan
6.) Remote control melalui kotak kontrol dan sakelar
7.) Remote control nirkabel tersedia
8.) DC 12V atau DC 24V Power drive opsional
9.) SWR tensioner tersedia
EWN15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet |
12V:Input: 5.4kW / 7.2hp;Output: 2.8 kW /3.8hp
24V:Input: 6.0 kW / 8.0hp;Output: 3.5 kW /4.7hp |
| Gear reduction ratio | 446:1 |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 5” (Ø88mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 15000(6804) | 19.7(6.0) | |
| 0 | 13.1(4.0) | 16.1(4.9) | 90 | 48 | 2 | 12000(5443) | 42.7(13.0) |
| 8000(3629) | 6.6(2.0) | 7.2(2.2) | 270 | 140 | 3 | 10100(4581) | 68.9(21.0) |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 320 | 180 | 4 | 8720(3955) | 83.7(25.5) |
| 12000(5443) | 4.6(1.4) | 5.9(1.8) | 380 | 200 | |||
| 15000(6804) | 4.3(1.3) | 5.6(1.7) | 450 | 250 | |||
| ITEM | EWN15000U | EWN15000S | ||
|
Overall dimensions
(L×W×H) |
23.3″×8.9″×10.3″(12V)
593mm×226mm×262mm(12V) |
23.3″×8.9″×12.4″(12V)
593mm×226mm×316mm(12V) |
||
|
22.7″×8.9″×10.3″(24V)
576mm×226mm×262mm(24V) |
22.7″×8.9″×12.4″(24V)
576mm×226mm×316mm(24V) |
|||
| Net weight (Ibs) |
162.9
73.8 |
163.3
74.1 |
||
| (kgs) | ||||
Dimensi Keseluruhan 23.3″ x 8.9″ x 12.4″
(P x L x T) 593mm x 226mm x 316mm
Berat Bersih 74.1 KGS
Kategori Produk : Derek Listrik > Winch Tugas Berat
