Model No: HWX9000A
Merek: PESANAN OEM DITERIMA
Sumber Daya: Hidrolik
Aplikasi: ATV / UTV, MOBIL
Kemasan: KEMASAN KARTON ATAU PALET EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
Derek Hidraulik kami memberi Anda solusi tugas berkelanjutan untuk kebutuhan derek Anda. Didesain dengan komersial terbaik
Dalam pikiran aplikasi, semua derek memiliki keandalan total untuk tarikan tangan yang berkelanjutan.
9000 lbs Hydarulic Winch Item No. HWX9000A dengan gigi peredam baja penuh dan desain cout dan struktur pemindah kecepatan yang dipatenkan, luar biasa lainnyafitur sebagai berikut disebutkan.
Fitur:

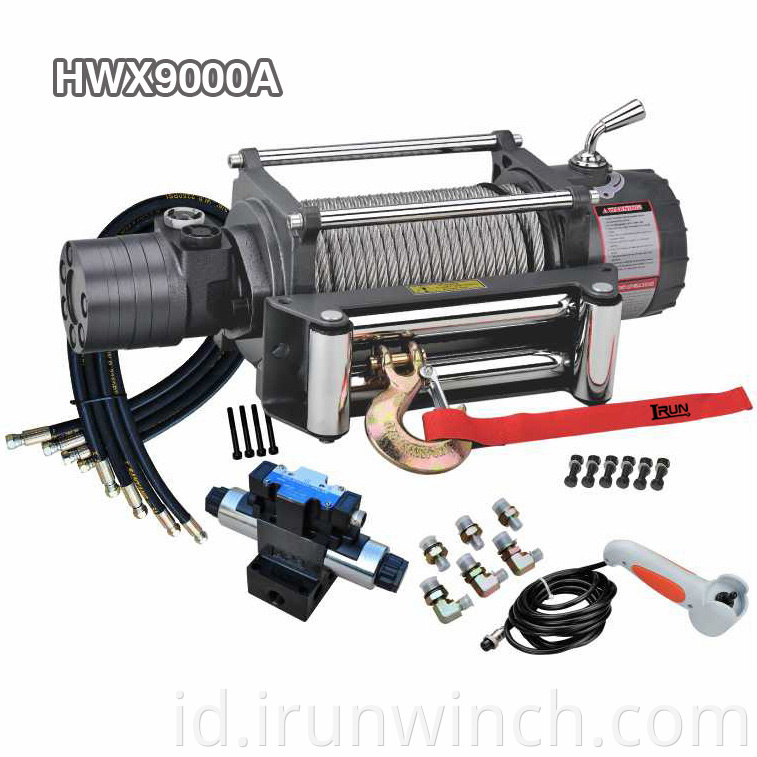

HWX9000A
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 9Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64 “×95′ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0(0) |
2.0(290.1) |
1.3(5) |
1.6(0.5) |
|
4000(1814) |
3.6(522.1) |
2.6(10) |
3.9(1.2) |
|
6000(2722) |
6.5(942.7) |
5.3(20) |
8.2(2.5) |
|
8000(3629) |
8.5(1232.8) |
9.2(35) |
14.1(4.3) |
|
9000(4082) |
9.0(1305.3) |
11.9(45) |
18.7(5.7) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
9000(4082) |
20.0(4.8) |
|
|
2 |
7452(3380) |
44.3(11.1) |
|
|
3 |
6358(2884) |
72.2(18.3) |
|
|
4 |
5544(2515) |
95.1(29.0) |
| ITEM | HWX9000A | HWX9000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.2 | 87.7 | |
| (kgs) | 40.5 | 40.7 |

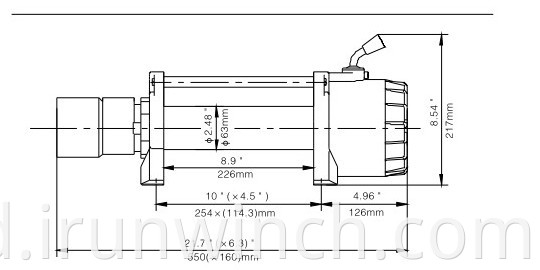

Dimensi Keseluruhan 21.6″ x 6.3″ x 8.54″
(P x L x T) 550mm x 160mm x 217mm
Berat Bersih 40,7 KGS
Kategori Produk : Derek 4wd Hidrolik > Hidrolik 4x4 Winch
