Model No: HWP10000YD
Merek: PESANAN OEM DITERIMA
Sumber Daya: Hidrolik
Aplikasi: MOBIL
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

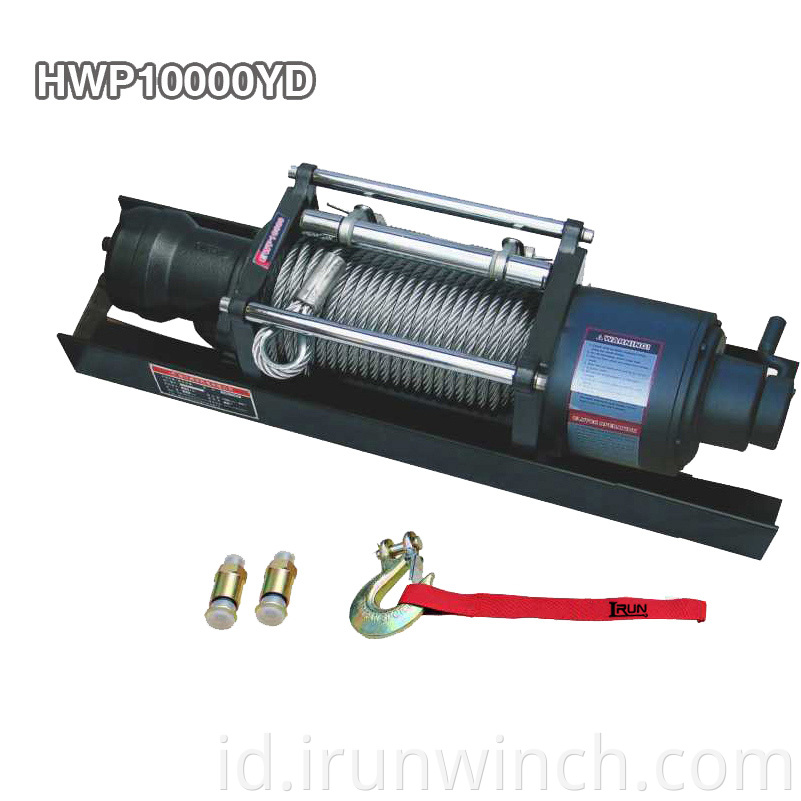

2 Kecepatan Hidrolik Industri Winch Item NO. Kapasitas tarikan HWP10000YD hingga 10.000 lbs
Sangat ideal untuk aplikasi derek, derek, utilitas, dan trailer dengan fitur sebagai berikut:
1.Perlengkapan peredam baja penuh
2. Desain paten peredam gigi planet dua tahap
3.Dua kecepatan dan kopling terintegrasi dengan satu pegangan
4. Kopling paten dan struktur perpindahan kecepatan
5.Clutch dan dua speed gear action auto engagement
6. Braket winch baja
7. Tindakan pengereman kerucut sekrup otomatis
8. SWR tensioner disediakan
HWP10000YD
| SPECIFICATION | |
| Rated line pull | 10000lbs(4536kgs) |
| Motor: permanent magnet | 50ml/r |
| Oil Flow | 15~40L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | High speed: 6:1;Low speed: 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 9″ (Ø63mm×223mm) |
| Mounting bolt pattern | 22.4 “×20.5 “×4.5 ” (570mm×520mm×114.3mm) 4-M10 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) | ||
| Low speed | High speed | Low speed | High speed | ||
| 0 | 0 | 2.0(290.1) | 4.0(15) | 7.2(2.2) | 41.7(12.7) |
| 4000(1814) | 696(316) | 3.9(565.6) | 6.6(25) | 12.5(3.8) | 72.5(22.1) |
| 6000(2722) | 1043(473) | 7.5(1087.7) | 9.2(35) | 18.0(5.5) | 103.0(31.4) |
| 8000(3629) | 1391(631) | 10.5(1522.8) | 10.6(40) | 20.3(6.2) | 117.5(35.8) |
| 10000(4536) | 1739(789) | 12.5(1812.9) | |||
| Layer of cable |
Rated line pull
Per layer lbs(kgs) |
Total rope on drum
ft (m) |
White oil flow10L/min | |
| Low speed | High speed | |||
| 1 | 10000(4536) | 17.4(5.3) | 20.3(6.2) | 117.5(35.8) |
| 2 | 7969(3615) | 39.4(12.0) | 26.2(8.0) | 149.9(45.7) |
| 3 | 6624(3005) | 65.0(19.8) | 31.8(9.7) | 182.7(55.7) |
| 4 | 5667(2571) | 85.3(26.0) | 37.4(11.4) | 215.6(65.7) |
| ITEM | HWP10000YD | ||
| Overall dimensions | 23.6″×8.3″ × 7.5″ | ||
| (L×W×H) | 600mm×210 mm×191mm | ||
| Net weight (Ibs) | 99 | ||
| (kgs) | 45 |
Kategori Produk : Derek Industri > Winch Hidrolik Industri
