Model No: EWP3500U
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

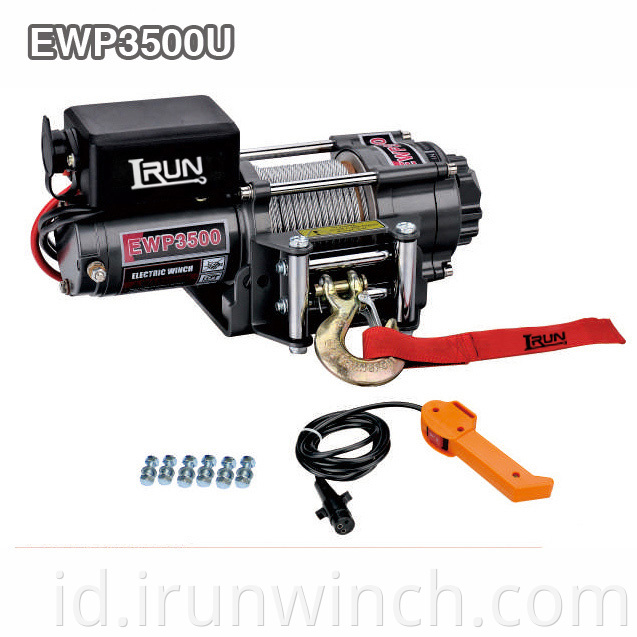

Electric UTV Winch 3500 lbs Item No.EWP3500U
Fitur:
1. Gear peredam baja gratis
2. Struktur kopling paten
3. Kopling spooling gratis
4. Tindakan pengereman kerucut sekrup otomatis
5. Penggerak daya DC 12V atau DC 24V opsional
6. Kontrol sakelar kerja crunt tinggi secara langsung
7. Kontrol sakelar stang ATV
8. Kotak kontrol yang dapat dilepas, opsional;
9. Kotak kontrol opsional memperbaiki terpisah
10. Remote control melalui kotak kontrol dan sakelar
11. Remote control nirkabel tersedia
EWP3500
| SPECIFICATION | |
| Rated line pull | 3500 lbs (1588 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4kW / 3.2hp; Output: 1.0 kW/1.3hp |
| 24V:Input: 2.9 kW / 3.9hp; Output: 1.2KW/1.6hp | |
| Gear reduction ratio | 170:1 |
| Cable (Dia.× L) | Ø 7/32″×42.0′ (Ø 5.4mm×12.8m) |
| Drum size (Dia.× L) | Ø 1.46″×3.15″ (Ø 37mm×80 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3500(1588) | 5.9(1.8) | |
| 0 | 10.5(3.2) | 10.5(3.2) | 20 | 16 | 2 | 2789(1265) | 13.5(4.1) |
| 1000(454) | 8.9(2.7) | 9.5(2.9) | 75 | 40 | 3 | 2319(1052) | 22.0(6.7) |
| 2000(907) | 7.5(2.3) | 8.9(2.7) | 130 | 75 | 4 | 1984 (900) | 31.2(9.5) |
| 3500(1588) | 4.6(1.4) | 7.5(2.3) | 200 | 120 | 5 | 1733 (786) | 42.0(12.8) |
| ITEM | EWP3500D | EWP3500A | EWP3500U |
| Overall dimensions | 13.2″×4.6″×4.4″ | 13.2″×4.6″×4.4″ | 13.7″×4.6″×6.5″ |
| (L×W×H) | 335mm×116mm×112 mm | 335mm×116mm×112 mm | 348mm×116mm×165mm |
| Net weight (Ibs) | 21.3 | 22.0 | 22.0 |
| (kgs) | 9.6 | 10.0 | 10.0 |
Dimensi keseluruhan: 13.7″x4.6″x6.5″
(PxLxT) 348mmx116mmx165mm
Berat Bersih: 10.0 KG
Kategori Produk : Derek Atv Dan Utv > Utv Winch
