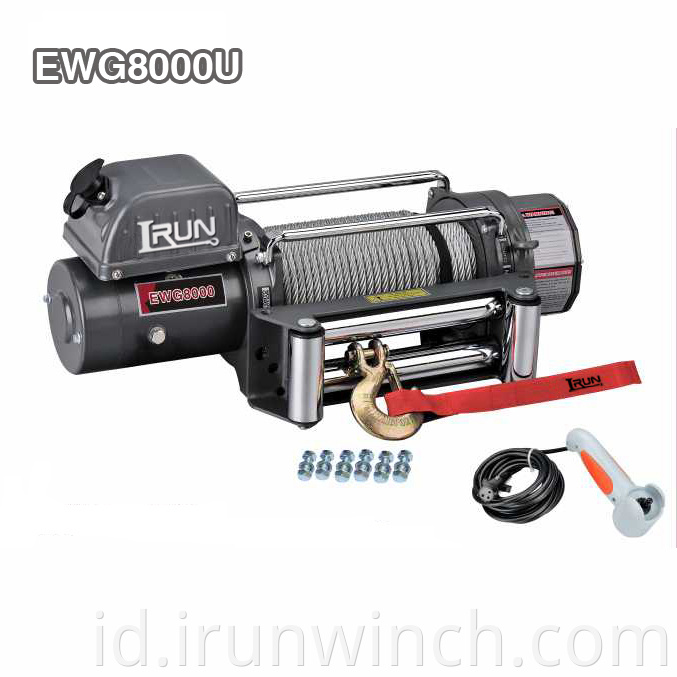

Model No: EWG8000U
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
EWG8000S
8000 lbs Electric Winch Model No. EWG8000S adalah produk perintis kami dari derek pemulihan luka seri 4 × 4. Ini masih memiliki penjualan jangka panjang yang baik karena desakan kami pada upaya untuk meningkatkan kualitas produk dan mengendalikan biaya produksi.
Fitur:
1. Kopling spooling gratis
2. Tindakan pengereman kerucut sekrup otomatis
3. Penggerak daya DC 12V atau DC 24V opsional
4. Motor Luka Seri
5. Remote control melalui kotak kontrol dan sakelar
6. Remote control nirkabel tersedia tipe F tetap di kotak kontrol
7. SWR tensioner tersedia
EWG8000
| SPECIFICATION |
|
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
|
|
|
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
|
|
12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 |
|
|
|
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 |
|
|
|

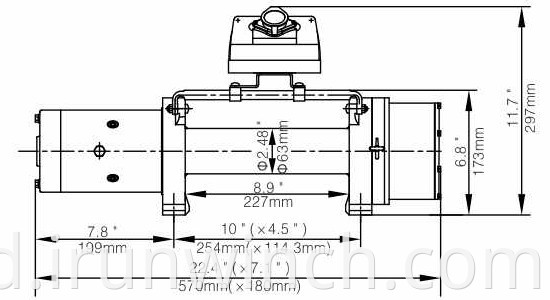

| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
| (kgs) |
Dimensi Keseluruhan： 22.4″ x 7.1″ x 11.3″
(P x L x T) 570mm x 180mm x 286mm
Berat Bersih ： 33.1 KGS
Kategori Produk : Derek Listrik > mesin derek 4x4
