Model No: EWG8000F
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: MOBIL
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: SHANGHAI,NINGBO
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

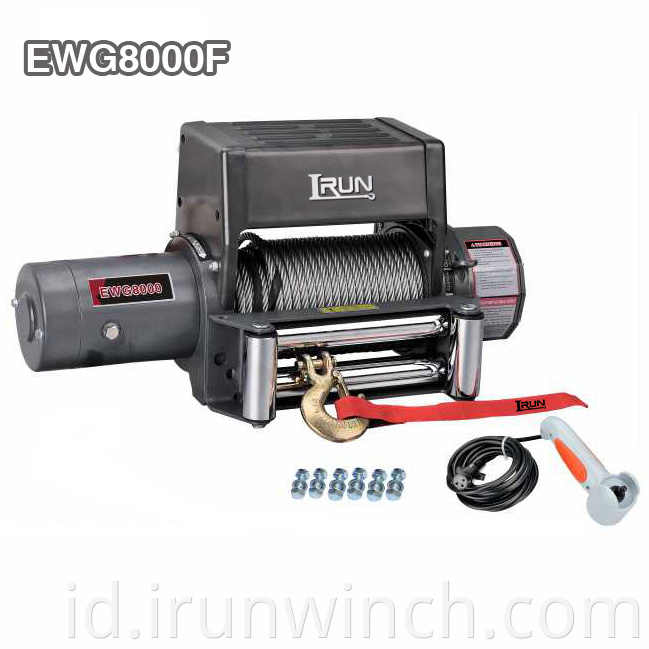

4 × 4 Derek Listrik 8000lbs Untuk Suv atau Jeep
EWG8000F
8000 lbs Electric Winch Item No.EWG8000F Sangat Bagus Untuk Suv atau Jeep Dengan kotak kontrol Stand-up dan Series Wound Motor. Ini adalah perwakilan produk perintis kami dari winch 4x4 pemulihan kami. kualitas yang stabil, kinerja yang baik dan fitur harga yang menarik memenangkan pujian besar dari seluruh pelanggan dunia.
Fitur:
1. Kopling spooling gratis
2. Tindakan pengereman kerucut sekrup otomatis
3. Penggerak daya DC 12V atau DC 24V opsional
4. Motor Luka Seri
5. Remote control melalui kotak kontrol dan sakelar
6. Remote control nirkabel tersedia tipe F tetap di kotak kontrol
7. SWR tensioner tersedia
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
| (kgs) |
Dimensi Keseluruhan： 22.4″ x 7.1″ x 10.6″
(P x L x T) 570mm x 180mm x 270mm
Berat Bersih: 33,5 KGS
Kategori Produk : Derek Listrik > mesin derek 4x4
