Model No: EWG10000F
Merek: PESANAN OEM DITERIMA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: KARTON EKSPOR
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

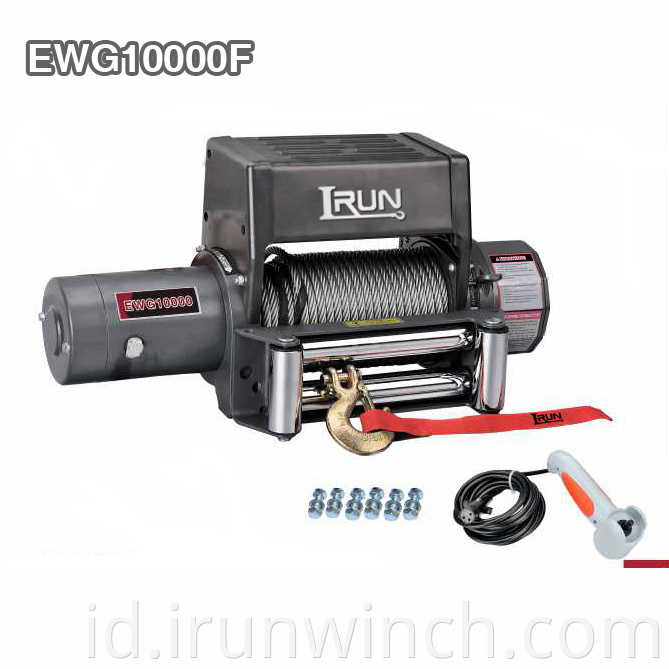

10000 lbs Electric Winch Item No. EWG10000F dengan kotak kontrol gaya stand-up yang juga merupakan perwakilan dari winch pemulihan 4x4 seri luka seri pertama kami. Ini sangat ideal untuk mobil offroad atau jeep. Ini memenangkan repuation yang bagus karena kualitasnya yang bagus, harga yang wajar dan kinerja yang baik.
Fitur:
1. Kopling spooling gratis
2. Tindakan pengereman kerucut sekrup otomatis
3. Penggerak daya DC 12V atau DC 24V opsional
4. Motor Luka Seri
5. Remote control melalui kotak kontrol dan sakelar
6. Remote control nirkabel tersedia tipe F tetap di kotak kontrol
7. SWR tensioner tersedia
EWG10000
| SPECIFICATION |
|
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound |
12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp
24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
|
|
|
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
|
|
12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 |
|
|
|
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 |
|
|
|
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
73.8
33.8 |
75.0
34.0 |
75.3
34.2 |
| (kgs |

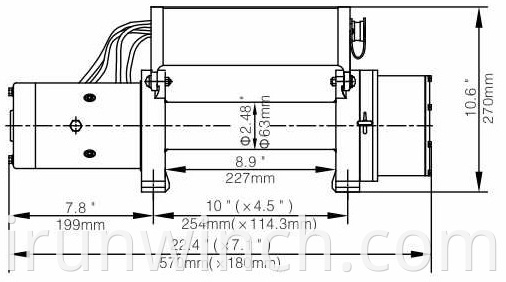

Dimensi keseluruhan: 22.4″ x 7.1″ x 10.6″
(P x L x T) 570mm x 180mm x 270mm
Berat Bersih: 34.2 KG
Kategori Produk : Derek Listrik > mesin derek 4x4
