Model No: EWK8000S
Merek: OEM pesanan dapat diterima
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: Ekspor Karton
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

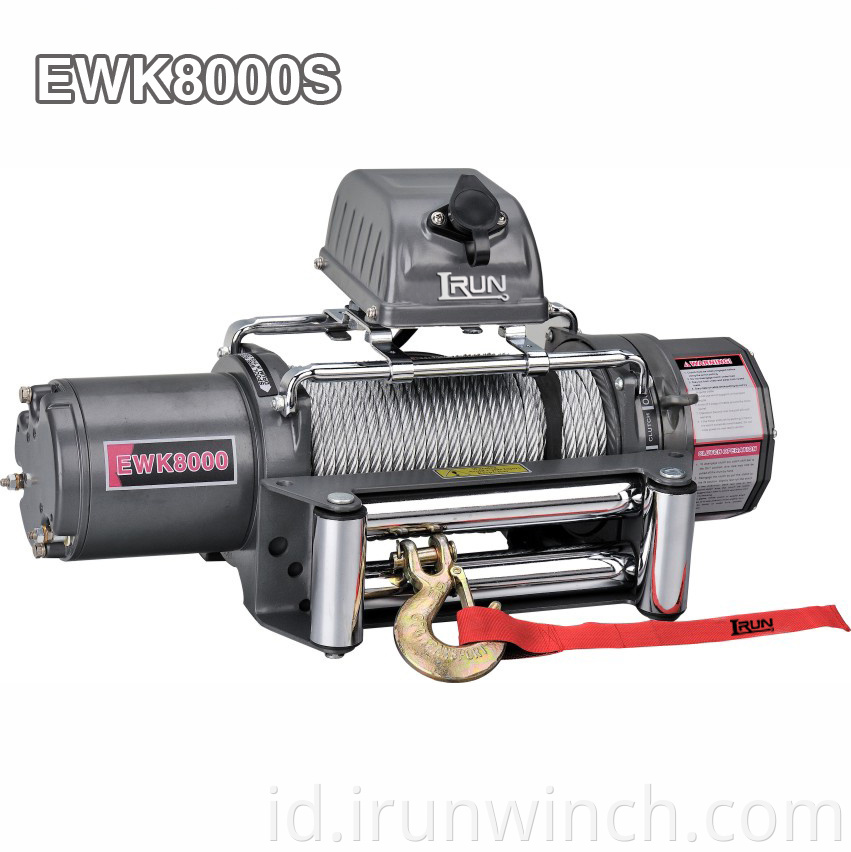

EWK8000S
8000 lbs winch pemulihan listrik dengan kotak kontrol diikat pada item winch bar no. EWK8000S. Ini adalah opsi bijak Anda pada winch pemulihan listrik 8000 pound berkinerja tinggi. Ini sebagai winch repersenen 8000 pound dari seri EWX dengan keunggulan ini efisiensi sempurna, penarikan yang stabil, dan desain kompak. Seri Winch ini memiliki desain paten kami DESKET Tiga panggung reduser planet membuat winch menjadi efisiensi transmisi ekstrem dan operasi keselamatan yang andal
Fitur:
1. Gigi reduser baja penuh
2. Paten Tiga Panggung Paham Planetary Pereduksi
3. Kopling gulungan gratis
4. Aksi pengereman kerucut sekrup otomatis
5. Motor Luka Seri Pendek
6. DC 12V atau DC 24V Power Drive Opsional
7. Remote Control melalui kotak kontrol dan sakelar
8. Kontrol remote nirkabel Tersedia jenis f yang diperbaiki di kotak kontrol
9. Tensioner SWR tersedia
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp
24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
| ITEM | EWK8000U | EWK8000S | EWK8000F |

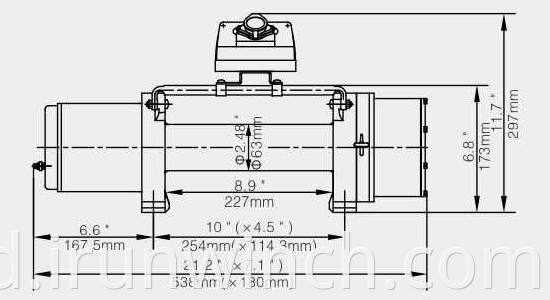

| Overall dimensions | 21.9″×7.1″×9.6″
555mm×180mm×243mm |
21.2″×7.1″×11.7″
538mm×180mm×297mm |
21.2″×7.1″×10.6″
538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5
28.8 |
64.2
29.1 |
68.1
31.0 |
| (kgs) |
Kategori Produk : Derek Listrik > mesin derek 4x4
